Streamline MCU STM32H723

The Streamline MCU STM32H723 is a higher performant Streamline STM32 MCU board build around a STM32H723.

Specifications

MCU STM32H723VE
Flash 512kB
RAM 564kB
Crystal 16MHz
LED PC13 (open drain)
Button Boot0/PC15 (pulled down)

Schematics

Sl mcu stm32h723.svg

Gallery

  • Sl mcu stm32h723-rev A top render.png

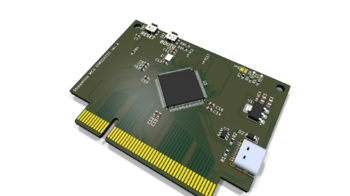

  • Sl mcu stm32h723-rev A top right render.png
  • Sl mcu stm32h723-rev A top left render.png
  • Sl mcu stm32h723-rev A bot render.png
  • Sl mcu stm32h723-rev A bot right render.png
  • Sl mcu stm32h723-rev A bot left render.png
