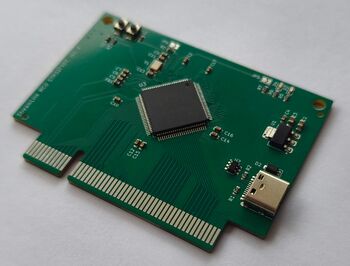

The Streamline MCU STM32F407 is a basic Streamline STM32 MCU board build around a STM32F407.

Specifications

MCU STM32F407VET6
Flash 512kB
RAM 128kB (+64kB CCMRAM)
Crystal 16MHz
LED PC13
Button Boot0/PC15

Schematics

Sl mcu stm32f407.svg

Gallery

  • Sl mcu stm32f407 bot render.png
  • Sl mcu stm32f407 top left render.png
  • Sl mcu stm32f407 top render.png
  • Sl mcu stm32f407 top right render.png

Miscellaneous Links
