The Streamline development system consist of Backplanes and Blades.
Physical Dimensions

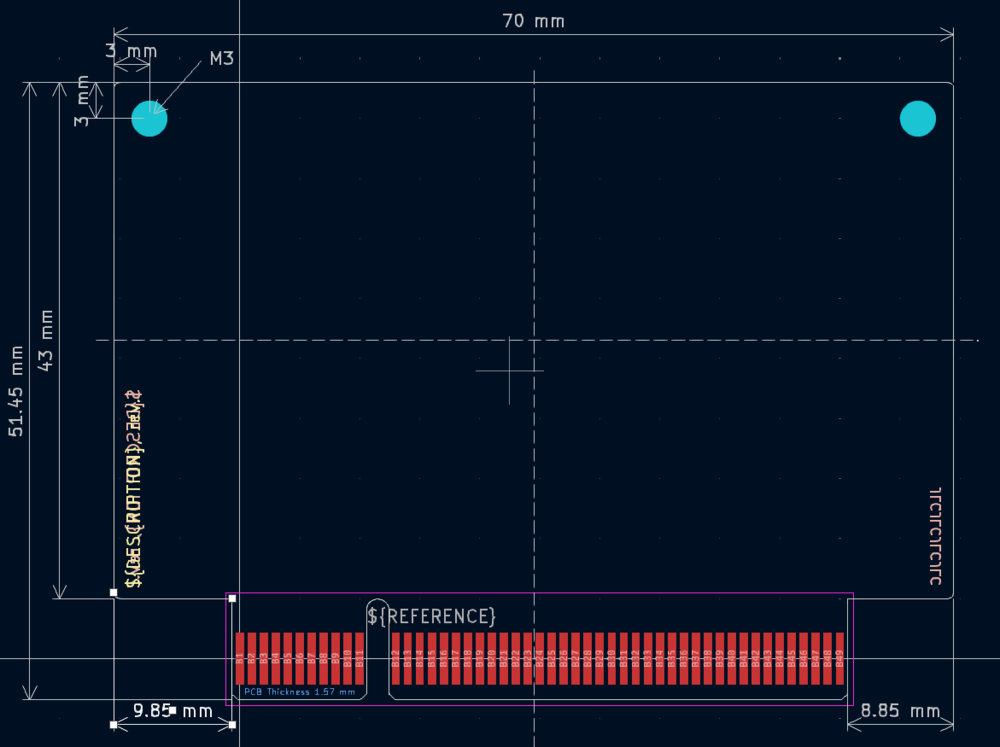

We encourage makers to create their own fantastic blades. The physical dimensions are shown here:
The edge connector should be according to the PCI Express ×4 standard resulting in a PCB thickness of 1.6mm.
