Colibri DII

From Stm32World Wiki
Jump to navigation Jump to search
Colibri dii top render.png
Colibri dii top right render.png
Colibri dii bot render.png

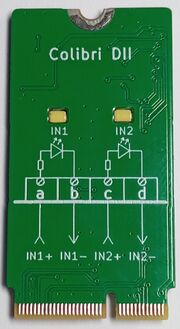

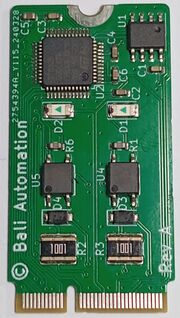

Colibri DIUI is an I/O module with two electrically isolated digital inputs, with a dedicated on-board STM32C071 processor.

I2C Addresses

 M24M01    = 0x50-0x51
 STM32C071 = 0x10-0x1F

Schematics

Colibri dii-rev B-schematics.svg
