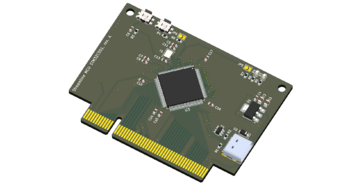

Streamline MCU STM32C511 (render)

The Streamline MCU STM32C511 is a basic Streamline STM32 MCU board build around a STM32C511.

Specifications

MCU STM32C511VE
Flash 512kB
RAM 128kB
Crystal 16MHz
LED PC13 (open drain)
Button Boot0/PC15 (pulled down)

Schematics

Sl mcu stm32c551.svg

Gallery

  • Sl mcu stm32c551 top right render.png
  • Sl mcu stm32c551 top render.png
  • Sl mcu stm32c551 top left render.png
  • Sl mcu stm32c551 bot render.png
