STM32 USB Custom HID

From Stm32World Wiki
Jump to navigation Jump to search

Work in progress!

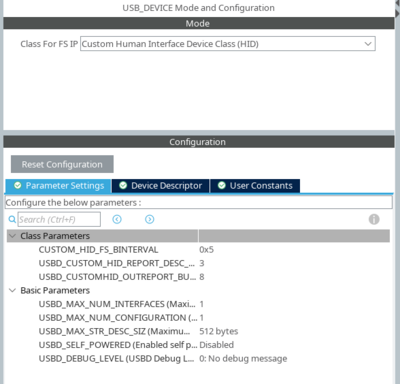

USB Setup.png

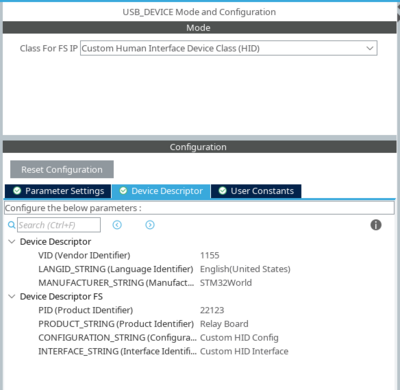

USB Descriptor.png

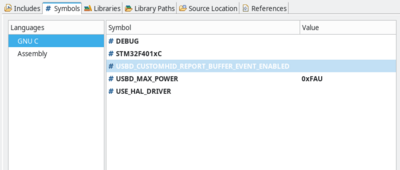

USB defines.png

File usbd_custom_hid_if.h:

/* USER CODE BEGIN EXPORTED_FUNCTIONS */
void CUSTOM_HID_OutEvent_FS_Handler(uint8_t *buffer);
/* USER CODE END EXPORTED_FUNCTIONS */

File usbd_custom_hid_if.c:

/** Usb HID report descriptor. */
__ALIGN_BEGIN static uint8_t CUSTOM_HID_ReportDesc_FS[USBD_CUSTOM_HID_REPORT_DESC_SIZE] __ALIGN_END =
        {
                /* USER CODE BEGIN 0 */
                0xA1, 0x01,
                /* USER CODE END 0 */
                0xC0 /*     END_COLLECTION	             */
        };
/**
 * @brief  Manage the CUSTOM HID class events
 * @param  event_idx: Event index
 * @param  state: Event state
 * @retval USBD_OK if all operations are OK else USBD_FAIL
 */
static int8_t CUSTOM_HID_OutEvent_FS(uint8_t event_idx, uint8_t state)
{
    /* USER CODE BEGIN 6 */
    UNUSED(event_idx);
    UNUSED(state);

    uint8_t *buffer = (uint8_t*) ((uint32_t) event_idx);

    CUSTOM_HID_OutEvent_FS_Handler(buffer);

    /* Start next USB packet transfer once data processing is completed */
    if (USBD_CUSTOM_HID_ReceivePacket(&hUsbDeviceFS) != (uint8_t) USBD_OK)
            {
        return -1;
    }

    return (USBD_OK);
    /* USER CODE END 6 */
}
void CUSTOM_HID_OutEvent_FS_Handler(uint8_t *buffer) {

    printf("Recv buffer: 0x%02x, 0x%02x 0x%02x\n", buffer[0], buffer[1], buffer[2]);

    switch (buffer[0]) {

    case 3:

        uint16_t new = ((uint16_t) buffer[1] << 8) | buffer[2];

        printf("Setting relays to: 0x%04x\n", new);

        set_relays(&rel, new);

        break;

    case 4:

        RTC_DateTypeDef date;
        RTC_TimeTypeDef time;

        date.Year = buffer[1];
        date.Month = buffer[2];
        date.Date = buffer[3];
        time.Hours = buffer[4];
        time.Minutes = buffer[5];
        time.Seconds = buffer[6];

        printf("Setting date/time %d %d %d %d %d %d\n", buffer[1], buffer[2], buffer[3], buffer[4], buffer[5], buffer[6]);

        if (HAL_RTC_SetTime(&hrtc, &time, RTC_FORMAT_BIN) != HAL_OK) {
            printf("RTC SetTime error\n");
        }

        if (HAL_RTC_SetDate(&hrtc, &date, RTC_FORMAT_BIN) != HAL_OK) {
            printf("RTC SetDate error\n");
        }

        break;

    }


}
