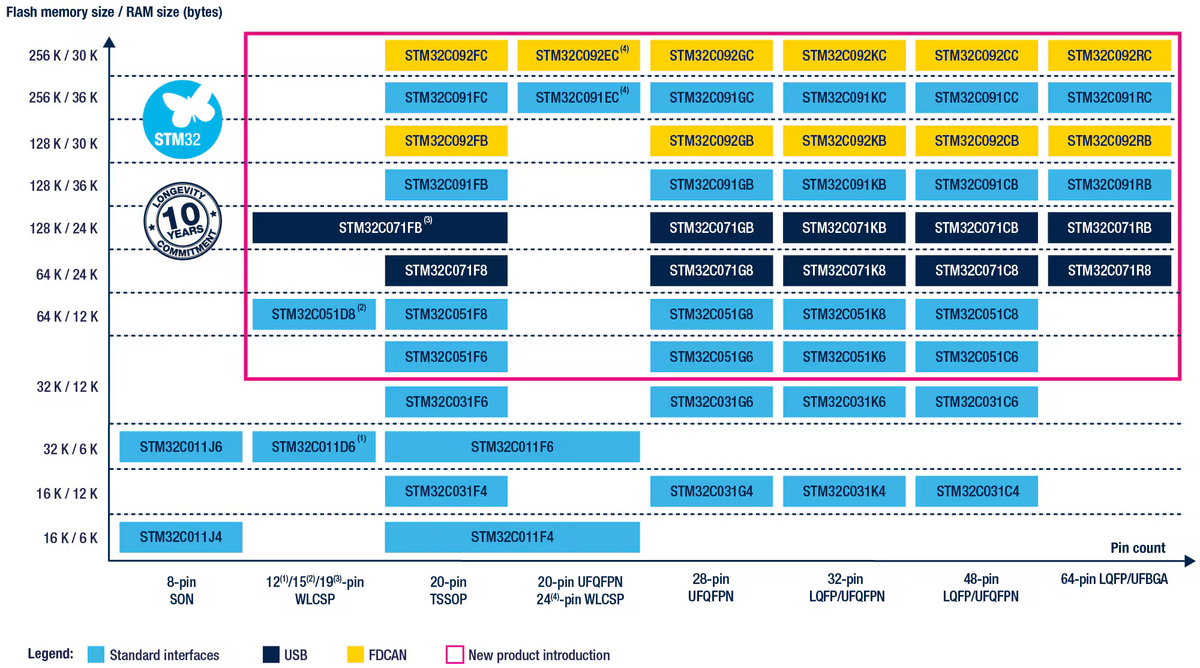

STM32C0xx Series

Not long ago, ST introduce their new low cost series STM32C0xx.

Video

To be added

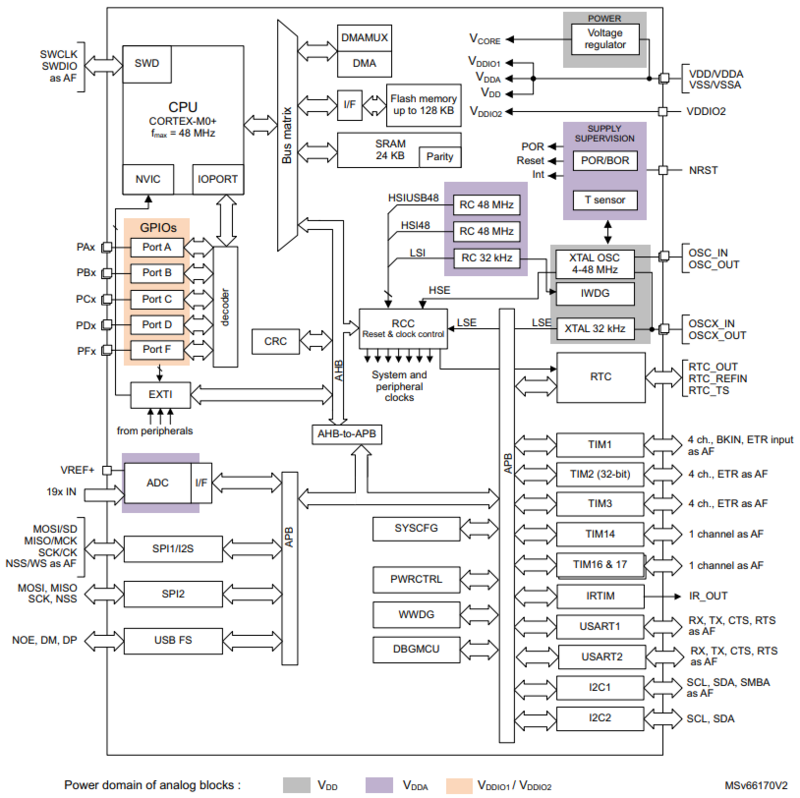

Block Diagram

Comparing STM32C071 with STM32F103

One big question is - WHY! The STM32C071 is not cheaper than the STM32F103, in fact in almost every measurable way it is lower spec'ed.

	STM32F103	STM32C071
Price (at the time of writing)	$1.82	$2.05
Core	M3	M0+
Max Core Clock	72 MHz	48 MHz
Flash	64 kB	64 kB
Timers	4 (1 + 3)	4 (1 + 3)
Clock PLL	Yes	NO
Trace Macrocell	Yes	No
Peripheral Busses	2	1
UARTs	3	2
