Colibri FET
Jump to navigation
Jump to search

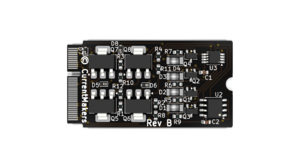

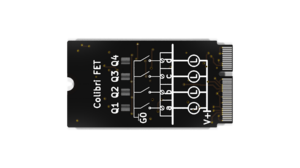

Colibri FET is an digital output I/O module with four N-channel MOSFET sinking to GND/G0
I2C Addresses
M24M01 = 0x50-0x51 PCA9536 = 0x41
EEPROM factory layout
See the Colibri EEPROM Layout page for the full picture.
Calibration data in EEPROM
Work in progress. Not available in product if ordered now.
| Address | Length | Description |
|---|
Test Report
Work in progress. Not available in product if ordered now.
| Address | Length | Description |
|---|---|---|
| 0x0100 | 4 | Year * 12 + month |
| 0x0104 | 4 | Date * 24 + hour |
| 0x0108 | 8 | Reserved for future use. |
| 0x0110 | 4 | EEPROM write/read/erase test. 32 cycles. Each cycle is represented in one bit. 0=Success, 1=Fail. |
Schematics
