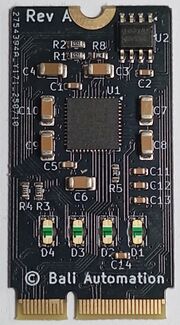

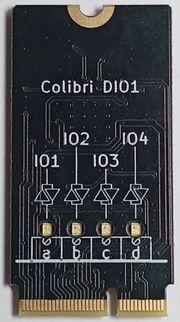

Colibri DIO1
Jump to navigation
Jump to search
Colibri DIO is an expansion module that is compliant with IEC 61131-2 specification. Each I/O can either be a digital input or a digital output, and each can operate in different modes.
MAX14906 is the component that implements this standard. See its datasheet.
The max current on the output is software selectable, up to 1.2Amp, BUT that is not achievable in practice, a) the thermals don't allow it, b) the base board has a limited power supply. We recommend that the current limit is set to 100mA.
Addresses
M24M01 = 0x50-0x51 SPI_CS0 = MAX14906 SPI_CS1 = not used SPI_CS2 = not used MAX14906 SPI address = 0x00
EEPROM factory layout
See the Colibri EEPROM Layout page for the full picture.
Calibration data in EEPROM
Work in progress. Not available in product if ordered now.
Schematics
