CMSIS DAPlink on Jolt or Streamline Connect

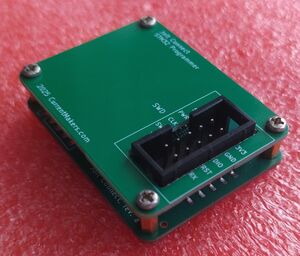

This page documents how to run CMSIS DAPlink firmware on a Jolt Connect or Streamline Connect.
Build from Source
First clone this repository.
Enter the folder and create a virtual python environment
lth@ncpws04:~$ cd src/DAPLink lth@ncpws04:~/src/DAPLink$ virtualenv venv lth@ncpws04:~/src/DAPLink$ . venv/bin/activate (venv) lth@ncpws04:~/src/DAPLink$ pip install -r requirements.txt
You can now build the two targets - the bootloader and the actual DAPLink firmware:
(venv) lth@ncpws04:~/src/DAPLink$ python tools/progen_compile.py --clean stm32f103xb_bl stm32f103xb_stm32f103rb_if
Flashing with ST-Link
After successful build, enter the resulting directory and flash using a st-link:
lth@ncpws04:~/src/DAPLink$ st-flash erase ; st-flash write projectfiles/make_gcc_arm/stm32f103xb_bl/build/stm32f103xb_bl.bin 0x8000000
Reconnect the daplink device. It will show up as a disc labelled MAINTENANCE. Mount that and copy the firmware file over. On my system:
lth@ncpws04:~/src/DAPLink$ cp projectfiles/make_gcc_arm/stm32f103xb_stm32f103rb_if/build/stm32f103xb_stm32f103rb_if.bin /run/media/lth/MAINTENANCE/
The device will now be a DAPLink.
Flashing a target with DAPLink
There are multiple tools and approaches but the most "generic" is probably to use openocd. In a Makefile I got the following target:
flash: $(BUILD_DIR)/firmware.elf openocd -f interface/cmsis-dap.cfg -f target/stm32f4x.cfg -c "program $< verify reset exit"
Another benefit is that the same approach can be used for debugging and that it is easy to switch between ST-Link and DAPLink.
Here's an example of multiple flash targets using different tools:
stlflash: $(BUILD_DIR)/firmware.bin st-flash --reset write $< 0x8000000 stflash: $(BUILD_DIR)/firmware.bin openocd -f interface/st-link.cfg -f target/stm32f4x.cfg -c "program $< verify reset exit" dapflash: $(BUILD_DIR)/firmware.bin pyocd flash --target stm32f412xe --base-address 0x8000000 $< flash: $(BUILD_DIR)/firmware.elf openocd -f interface/cmsis-dap.cfg -f target/stm32f4x.cfg -c "program $< verify reset exit"
