Colibri Fallback

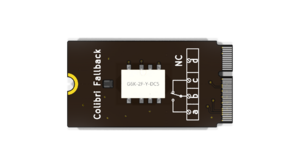

Colibri Fallback is an digital output I/O module with one SPDT (single-pole, dual-throw) relay.
What about that name?
We have extensively used this in HVAC renovation projects, where the customer wants to keep the previous system in place, as an insurance against we going out of business, something breaks or in case the software goes haywire. So, we connect the valve to pin "b", the Colibri output signal on pin "a" and the old system's output signal on pin "c". We can remotely control if we want to swap over to previous system, or if the owners wants to do it, they just turn the Colibri system OFF.
I2C Addresses
M24M01 = 0x50-0x51 PCA9536 = 0x41
EEPROM factory layout
See the Colibri EEPROM Layout page for the full picture.
Calibration data in EEPROM
Work in progress. Not available in product if ordered now.
| Address | Length | Description |
|---|
Test Report
Work in progress. Not available in product if ordered now.
| Address | Length | Description |
|---|---|---|
| 0x0100 | 4 | Year * 12 + month |
| 0x0104 | 4 | Date * 24 + hour |
| 0x0108 | 8 | Reserved for future use. |
| 0x0110 | 4 | EEPROM write/read/erase test. 32 cycles. Each cycle is represented in one bit. 0=Success, 1=Fail. |
